With many standard features for high-performance coil processing, RMG Straighten and Cut Machines utilize an innovative, easy-to-adjust, three-die arbor, and our patented Clutchless Cutter - when combined, provides unmatched straightening and cutting capabilities with less maintenance.

We offer three series of machines to meet your straighten and cutting needs:

Low Carbon Steels

RMG Series

Our RMG series offers five models of wire straightening and cutting machines covering a diameter range of 0.050″ (1.3mm) to 0.500″ (12.7mm). Each model utilizes the innovative, easy-to-adjust single offset, three die arbor, with our patented “Clutchless Cutter” for improved performance and less maintenance. RMG series is ideally suited for quick changeovers from one wire diameter to another.

View Models
Medium Carbon Alloys

Lewis Series

Our Lewis series offers seven models of wire straightening and cutting machines covering a diameter range of 0.050″ (1.3mm) to 0.750″ (19.0mm). Each model has the triple offset, five die arbor, with our patented “Clutchless Cutter” for improved performance and less maintenance. The Lewis series is ideally suited for short parts with Auto Cycle and variable speed cutter control.

View Models
High Carbon and Specialty Alloys

Synchro Cut Series

Our Synchro Cut series offers four models of wire straightening and cutting machines covering a diameter range of 0.098” (2.5mm) to 0.875” (22.0mm). Each model has the Lewis five die arbor, with our patented “Clutchless Cutter” for improved performance and less maintenance. The Synchro-cut series is ideally suited for tough high carbon alloys and spring steel applications.

View Models

RMG Industry 4.0

RMG offers several technology packages with our equipment that reduce setup time, increase production, and keep your supervisors connected and aware of production and downtime.

Touch Screen Features

  • Feed, Arbor, and Cut off load monitors alert if preset limits are exceed indicating excessive load or wear.
  • Recipe’s save key production settings so setups are faster, consistent and result in less scrap.
  • Preventative maintenance reminders based on time, cycle, performance, and customer preset.
  • Fault history maintains the last 100 fault messages to date with intuitive production and fault information.
  • Production rates, counts, and targets are clearly displayed.
  • Touch Screens can be viewed on a mobile device or computer for live production monitoring.

Remote Diagnostics Capability

  • Optional Tosibox communications module allows RMG to remotely troubleshoot and program your equipment should the need arise.
  • Optional fault history logging to USB memory stick. If assistance is needed the USB stick contents can be emailed to RMG engineering so we can see your complete fault history to better assist with troubleshooting.

Safety

At RMG we continually evolving our safety systems. New features include:

  • Motion monitored locking Arbor Door. The arbor door will not release until all arbor motion has stopped.
  • All VFD drives utilize safe torque off complying with IEC 61800-5-2 safety standards.

DCS & SCADA Connectivity

  • RMG can package and present production and control data to your Distributed Control System or Supervisory Control system in any standardized format.
Show sidebar

Lewis Series

The Lewis Series covers a diameter range of 0.050" to 0.750" (1.3mm to 19.0mm) to process medium carbon allows for short part applications with variable speed control. With machines still running for more than 90 years, these machines come standard with the triple offset, five die arbor and our patented Clutchless Cutter for 24/7 dependable performance with less maintenance.
Standard Features
  • Able to handle up to 90,000psi UTS material
  • Patented Clutchless cutter
  • Variable speed arbor, and feed heads
  • Auto cycle control of cutter for improved productivity of short part lengths
  • Arbor, cutter, and feed heads powered by independent VFD and premium efficiency motors
  • Micro fine release assembly, with length adjustments up to 1″ (25.4mm) while the machine is running
  • Entry wire guide assembly with lubrication box
  • Programmable safety shut down timer, stops machine if a feeding problem restricts wire and reduces scrap
  • Programmable parts batch counter, stops machine when desired number of cut parts is reached
View Product This product has multiple variants. The options may be chosen on the product page

RMG Series

For processing low carbon steel, the RMG Series covers a diameter range of 0.050" to 0.500" (1.3mm to 12.7mm) and is ideally suited for quick changeovers from one wire diameter to another. Behind our machines is a team of expert sales and service technicians, along with extensive inventory of parts and tooling.
Standard Features
  • Able to handle up to 70,000psi UTS material
  • Patented Clutchless cutter
  • Variable speed arbor and feed head
  • Single die offset, variable pitch arbor
  • Arbor, cutter, and feed head powered by independent VFD and premium efficiency motors
  • Micro fine release assembly, with length adjustments up to 1″ (25.4mm) while the machine is running
  • Sealed arbor bearing system for low maintenance and extended life
  • Programmable safety shut down timer, stops machine if a feeding problem restricts wire and reduces scrap
  • Programmable parts batch counter, stops machine when desired number of cut parts is reached
View Product This product has multiple variants. The options may be chosen on the product page

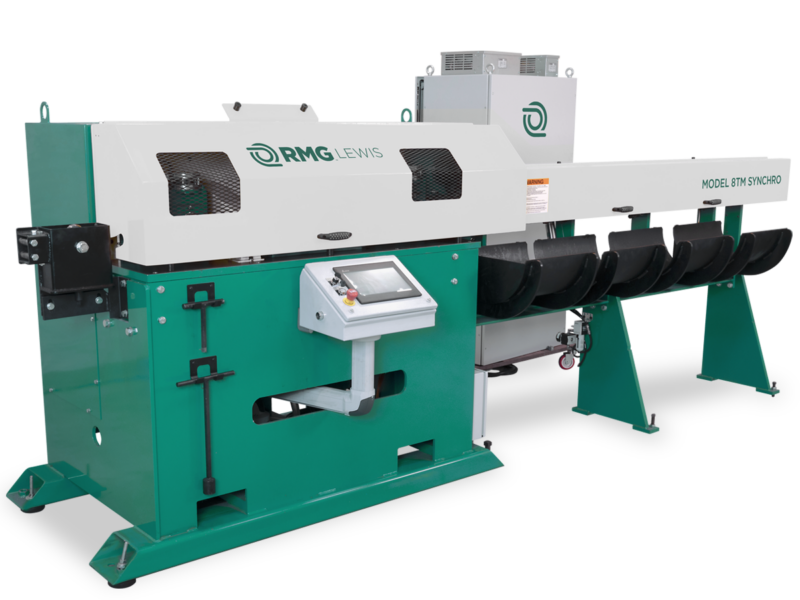

Synchro Cut Series

For high carbon and specialty alloys, the Synchro Cut Series covers a diameter range of 0.098" to 0.750" (2.5mm to 19.1mm). Featuring the "industry-standard" Lewis five die arbor, patented Clutchless Cutter, and the innovative travel cut shear for continuous material movement, these machines truly keep up with the pace of production.
Standard Features
  • Able to handle up to 250,000+psi UTS material
  • Travel Cut shear for continuous material movement
  • Variable speed arbor, and feed heads
  • Arbor, cutter, and feed heads powered by independent VFD and premium efficiency motors
  • Laser trip Jag release assembly, with length adjustments  up to 1″ (25.4mm) while the machine is running
  • Entry wire guide assembly with lubrication box
  • Programmable safety shut down timer, stops machine if a feeding problem restricts wire and reduces scrap
  • Programmable parts batch counter, stops machine when desired number of cut parts is reached
  • Fault/Status messaging with history
  • Recipe management
  • Touch Panel and PLC
  • PLC I/O status display for diagnostics
View Product This product has multiple variants. The options may be chosen on the product page
